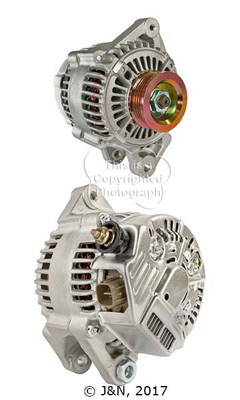

TOYOTA ALTERNATOR 104210-8180, 104210-840, 104210-8400, 104210-8401

179 $CAD

SKU: 11203n-A11203N Categories: , ,

Description

Toyota Car Alternator Replacement for Denso Hairpin IR/If, 80 Amp/12 Volt, Cw, 4-Groove Pulley, 11203n, Denso 104210-8180, 104210-840, 104210-8400, 104210-8401, Toyota 27060-21150, 27060-21151

APPLICATIONS
MAKE Toyota
MODEL  YARIS
ENGINE 1497cc, 1.5L L4
YEAR 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
NOTES
Toyota YARIS 1.5 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Toyota Yaris 1497cc, 1.5L L4 1NZFE 2007, 2008, 2009
Toyota Yaris 1497cc, 1.5L L4 1NZFE 2007, 2008, 2009
Toyota Yaris 1497cc, 1.5L L4 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

LESTER 11203, 11505
CRITICAL NOTE This Unit is a Standard Wound Stator Design, NOT a Hairpin Type like the OE.
VOLT 12
AMPS 80
CONDITION New
REGULATOR CLOCK 8:30
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 M10x1.25
MOUNT HOLE 3 TYPE Threaded
MOUNTING EAR THICKNESS 0.882″
MOUNTING EAR THICKNESS 22.400mm
MOUNTING EAR 2 THICKNESS 0.709″
MOUNTING EAR 2 THICKNESS 18mm
MOUNTING EAR 3 THICKNESS 0.909″
MOUNTING EAR 3 THICKNESS 23.100mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 IG
TERMINAL 3 SIZE Spade
TERMINAL ID 4 S
TERMINAL 4 SIZE Spade
TERMINAL ID 5 L
TERMINAL 5 SIZE Spade
TERMINAL ID 6 FR
TERMINAL 6 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 4
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.441″
PULLEY OUTER DIAMETER 62mm

TOYOTA 27060-21150, 27060-21151
